DC-DC converter: keeping a boost converter in a safe band


System	2-D continuous, switched by the input
Specification	safety
Solver	uniform grid abstraction, twice

A boost DC-DC converter, widely studied as a hybrid control benchmark (Girard et al., 2010). The state is the inductor current and the capacitor voltage, $x = (i_L, v_C)$, and the only control is the position of a switch, which selects between two affine dynamics:

\[\dot{x} = A_p x + b, \qquad p \in \{1, 2\}.\]

The goal is not to reach anything — it is to never leave a band around the operating point, using nothing but the switching signal.

This page does one model twice. The plant and the specification are written once, and then handed to two different abstractions: a uniform grid, and a grid of ellipsoidal cells that exploits the converter's incremental stability. Nothing about the model changes between them, which is the point of putting every solver behind the same interface.

using StaticArrays, JuMP, Plots
import LazySets

The first model supplies its dynamics as a Julia function and needs no symbolic backend; the hybrid model at the end writes them as ∂ expressions, which does.

using Symbolics, MathOptSymbolicAD

using Dionysos
const DI = Dionysos
const UT = DI.Utils
const ST = DI.System
const MP = DI.Mapping
const SY = DI.Symbolic
const AB = DI.Optim.Abstraction;

The model

The circuit constants, and the two affine vector fields the switch selects between: $\dot{x} = A_p x + b$, with $p = 1$ for the closed switch and $p = 2$ for the open one.

vs, xL, xC, r0, rL, rC = 1.0, 3.0, 70.0, 1.0, 0.05, 0.005

A1 = SMatrix{2, 2}(-rL / xL, 0.0, 0.0, -1.0 / (xC * (r0 + rC)))
A2 = SMatrix{2, 2}(
    -(rL + r0 * rC / (r0 + rC)) / xL,
    5.0 * r0 / ((r0 + rC) * xC),
    -r0 / ((r0 + rC) * xL * 5.0),
    -1.0 / (xC * (r0 + rC)),
)
b = SVector(vs / xL, 0.0)

dynamic = (x, u) -> u[1] == 1 ? A1 * x + b : A2 * x + b;

The growth bound needs a nonnegative off-diagonal — it bounds how fast neighbouring trajectories separate, which is a magnitude — so mode 2 contributes A2 with that entry made positive. Mode 1 is already diagonal and non-positive, so it is used as is.

A2_abs = SMatrix{2, 2}(
    -(rL + r0 * rC / (r0 + rC)) / xL,
    5.0 * r0 / ((r0 + rC) * xC),
    r0 / ((r0 + rC) * xL * 5.0),
    -1.0 / (xC * (r0 + rC)),
)

jacobian_bound = u -> u[1] == 1 ? A1 : A2_abs;

x_low, x_upp = [1.15, 5.45], [1.55, 5.85]
safe = LazySets.Hyperrectangle(; low = SVector(x_low...), high = SVector(x_upp...))
initial = LazySets.Hyperrectangle(; low = SVector(1.19, 5.59), high = SVector(1.21, 5.61));

direct_model rather than Model: the roles below are recorded against the optimizer, and a cached model has not handed it the variables yet.

model = direct_model(Dionysos.Optimizer());
@variable(model, x_low[i] <= x[i = 1:2] <= x_upp[i])
@variable(model, 1 <= u <= 2);

The dynamics are a Julia function, not a JuMP expression: Aₚ x + b is selected by an if on the input, which no algebraic expression can express. Supplying f leaves the front-end nothing to infer from, so two things have to be said explicitly — which variables are states, and whether f is a vector field or a one-step map.

set_role!(x, Dionysos.STATE)
set_attribute(model, "dynamics", dynamic)
set_attribute(model, "time_domain", Dionysos.CONTINUOUS);

Safety: start in a small box around the operating point, and never leave the band. Always rather than ∉ — staying inside is the requirement, so those states must remain representable for the synthesis to reason about leaving them.

@constraint(model, x in Start(initial))
@constraint(model, x in Always(safe));

The abstraction

The input grid is what makes the switch a two-valued signal: one cell wide, centred on 1, over the input bounds [1, 2].

hx = SVector(2.0 / 4.0e3, 2.0 / 4.0e3)
set_attribute(model, "state_grid", MP.GridFree(SVector(0.0, 0.0), hx))
set_attribute(model, "input_grid", MP.GridFree(SVector(1), SVector(1)))
set_attribute(model, "jacobian_bound", jacobian_bound)
set_attribute(model, "time_step", 0.5)
set_attribute(model, "approx_mode", AB.UniformGridAbstraction.GROWTH)
set_attribute(model, "print_level", 0);

Solving

optimize!(model);

Results

termination_status(model)

OPTIMAL::TerminationStatusCode = 1

concrete_problem = get_attribute(model, "concrete_problem");
concrete_controller = get_attribute(model, "concrete_controller");
invariant_set = get_attribute(model, "invariant_set");

The certificate of a safety problem is the maximal controlled-invariant set: every state in it can be kept inside the band forever, and no state outside it can.

Closed loop

trajectory = Dionysos.simulate(model, SVector(1.2, 5.6); nsteps = 150);

Visualisation

fig = plot(; aspect_ratio = :equal)
plot!(concrete_problem)
plot!(trajectory; ms = 2.0, color = :blue)

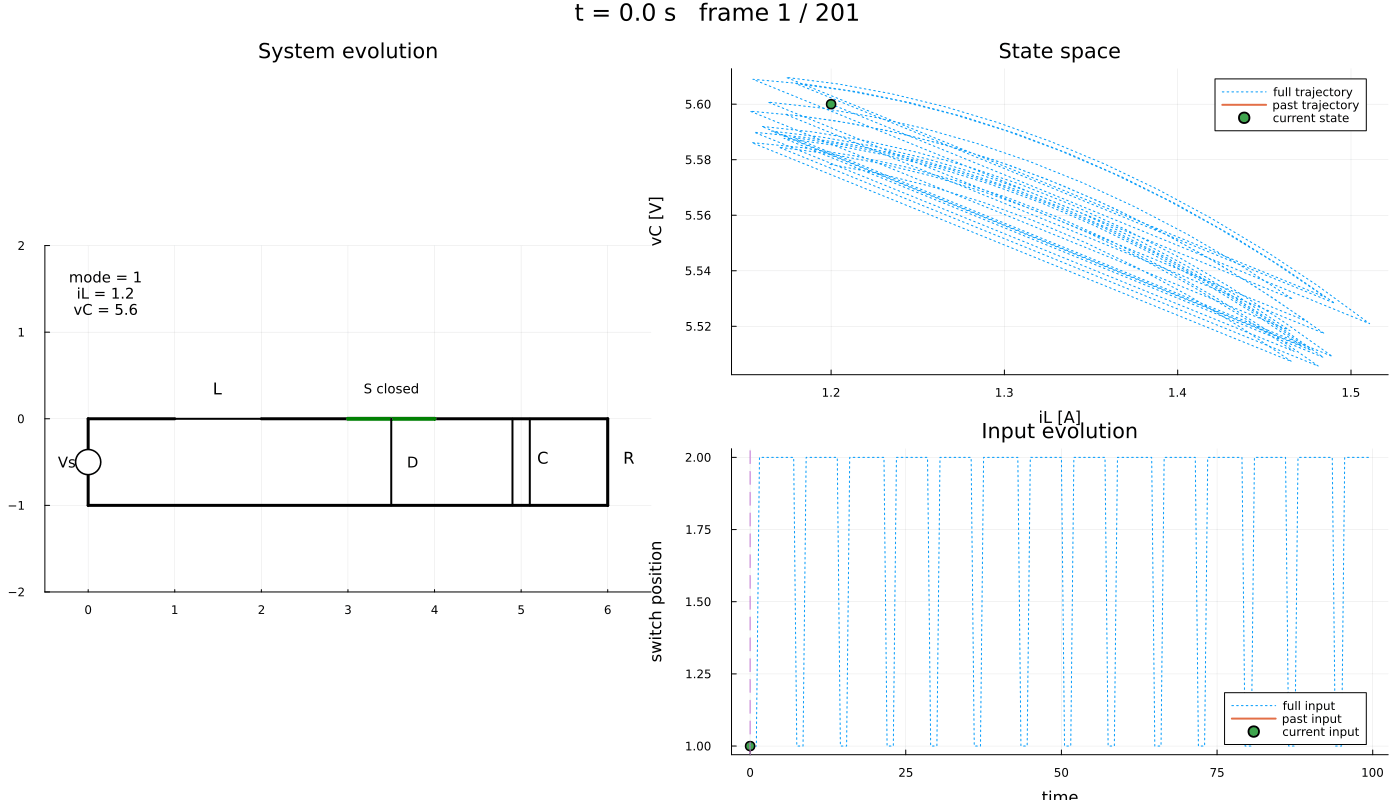

The converter circuit alongside the state and the switching signal. Only the drawing is borrowed from the problem library — everything above is defined on this page.

include(
    joinpath(dirname(dirname(pathof(Dionysos))), "problems", "DCDC", "dcdc_converter.jl"),
);

frame_step and fps trade smoothness against file size. Two steps per frame keeps the state moving a small distance between frames — at six it jumped far enough to read as stuttering — and fps is chosen so the run lasts about ten seconds.

anim = Dionysos.animate_trajectory_dashboard(
    DCDC.system_plot!(),
    trajectory;
    xdims = (1, 2),
    udims = (1,),
    Δt = 0.5,
    frame_step = 2,
    xlabel_state = "iL [A]",
    ylabel_state = "vC [V]",
    ylabel_input = "switch position",
);
gif(anim; fps = 8)

The same problem, a different abstraction

concrete_problem is a solver-independent object: a system plus a SafetyProblem. Handing it to another optimizer needs no change to the model at all — only a different discretisation.

This converter is incrementally stable, which means trajectories from nearby states converge. That justifies covering the state space with ellipsoidal cells shaped by a Lyapunov matrix P, instead of squares: fewer, better-adapted cells for the same guarantee.

origin = SVector(0.0, 0.0)
η = (2 / 4.0) * 10^(-3)
ϵ = 0.1 * 0.01
P = SMatrix{2, 2}(1.0224, 0.0084, 0.0084, 1.0031)
state_grid = MP.GridEllipsoidalRectangular(origin, SVector(η, η), P / ϵ)

optimizer = MOI.instantiate(AB.UniformGridAbstraction.Optimizer)
MOI.set(optimizer, MOI.RawOptimizerAttribute("concrete_problem"), concrete_problem)
MOI.set(optimizer, MOI.RawOptimizerAttribute("state_grid"), state_grid)
MOI.set(
    optimizer,
    MOI.RawOptimizerAttribute("input_grid"),
    MP.GridFree(SVector(1), SVector(1)),
)
MOI.set(optimizer, MOI.RawOptimizerAttribute("jacobian_bound"), jacobian_bound)
MOI.set(optimizer, MOI.RawOptimizerAttribute("time_step"), 0.5)
MOI.set(
    optimizer,
    MOI.RawOptimizerAttribute("approx_mode"),
    AB.UniformGridAbstraction.CENTER_SIMULATION,
)
MOI.set(optimizer, MOI.RawOptimizerAttribute("print_level"), 0)
MOI.optimize!(optimizer);

MOI.get(optimizer, MOI.TerminationStatus())

OPTIMAL::TerminationStatusCode = 1

abstract_system2 = MOI.get(optimizer, MOI.RawOptimizerAttribute("abstract_system"));
controller2 = MOI.get(optimizer, MOI.RawOptimizerAttribute("concrete_controller"));

traj2 = ST.get_closed_loop_trajectory(
    MOI.get(optimizer, MOI.RawOptimizerAttribute("discrete_time_system")),
    controller2,
    SVector(1.2, 5.6),
    300,
);


fig2 = plot(; aspect_ratio = :equal)
plot!(concrete_problem)
plot!(traj2; ms = 2.0, color = :blue)

The same plant, a different model

Everything above treats the converter as one continuous system whose input selects the dynamics. But the plant is just as honestly described as a hybrid automaton: two modes, one per switch position, each carrying its own affine dynamics, with transitions between them.

Neither reading is a workaround for the other — they are two ways of saying the same thing, and the front-end expresses both. What changes is not the plant but the vocabulary: @mode instead of an input dimension, and add_transition! instead of if u == 1.

Note what is absent: no input variable. Here the switch is the only control, so no mode has a continuous input at all. Its input space is zero-dimensional — a space with exactly one point, which is the action "leave the switch where it is" and is what lets the state evolve inside a mode. Nothing needs to be declared for it.

hybrid = Model(Dionysos.Optimizer);
@variable(hybrid, 1.15 <= xh[i = 1:2] <= 1.55)
set_lower_bound(xh[2], 5.45)
set_upper_bound(xh[2], 5.85)

@mode(hybrid, closed)
@mode(hybrid, opened);

One mode per switch position, each with its own affine dynamics.

@constraint(closed, ∂(xh[1]) == A1[1, 1] * xh[1] + A1[1, 2] * xh[2] + b[1])
@constraint(closed, ∂(xh[2]) == A1[2, 1] * xh[1] + A1[2, 2] * xh[2] + b[2])
@constraint(opened, ∂(xh[1]) == A2[1, 1] * xh[1] + A2[1, 2] * xh[2] + b[1])
@constraint(opened, ∂(xh[2]) == A2[2, 1] * xh[1] + A2[2, 2] * xh[2] + b[2]);

A guard spanning the whole safe set means the switch is always available — which is exactly what a converter's switch is: the controller decides, the state does not gate it.

add_transition!(hybrid, closed => opened) do t
    return @constraint(t, xh in Guard(safe))
end
add_transition!(hybrid, opened => closed) do t
    return @constraint(t, xh in Guard(safe))
end

@constraint(closed, xh in Always(safe))
@constraint(opened, xh in Always(safe));

The discretisation is per mode, as always for a hybrid model. This one is deliberately four times coarser than the grid used above: the point of this section is the encoding, and the fine grid is already exercised by the first model.

for (md, Ab) in ((closed, A1), (opened, A2_abs))
    set_attribute(md, "state_grid", MP.GridFree(SVector(0.0, 0.0), 4 .* hx))
    set_attribute(md, "time_step", 0.5)
    set_attribute(md, "approx_mode", AB.UniformGridAbstraction.GROWTH)
    set_attribute(md, "jacobian_bound", u -> Ab)
    set_attribute(md, "print_level", 0)
end

print_level on a mode silences that mode's sub-solver; the hybrid solver above them has its own, set on the model.

set_attribute(hybrid, "print_level", 0)

optimize!(hybrid);

termination_status(hybrid)

OPTIMAL::TerminationStatusCode = 1

The augmented state of a hybrid model is (x, mode), so the closed loop starts from a state and a switch position, and carries the mode the controller chose at each step alongside the usual state and input channels.

hybrid_traj = Dionysos.simulate(hybrid, (SVector(1.2, 5.6), 1); nsteps = 200);

Projected back onto the state plane, the hybrid closed loop is directly comparable with the two above: same band, same operating point, a third route to staying inside it.

fig3 = plot(; aspect_ratio = :equal)
plot!(concrete_problem)
plot!(hybrid_traj; ms = 2.0, color = :blue)

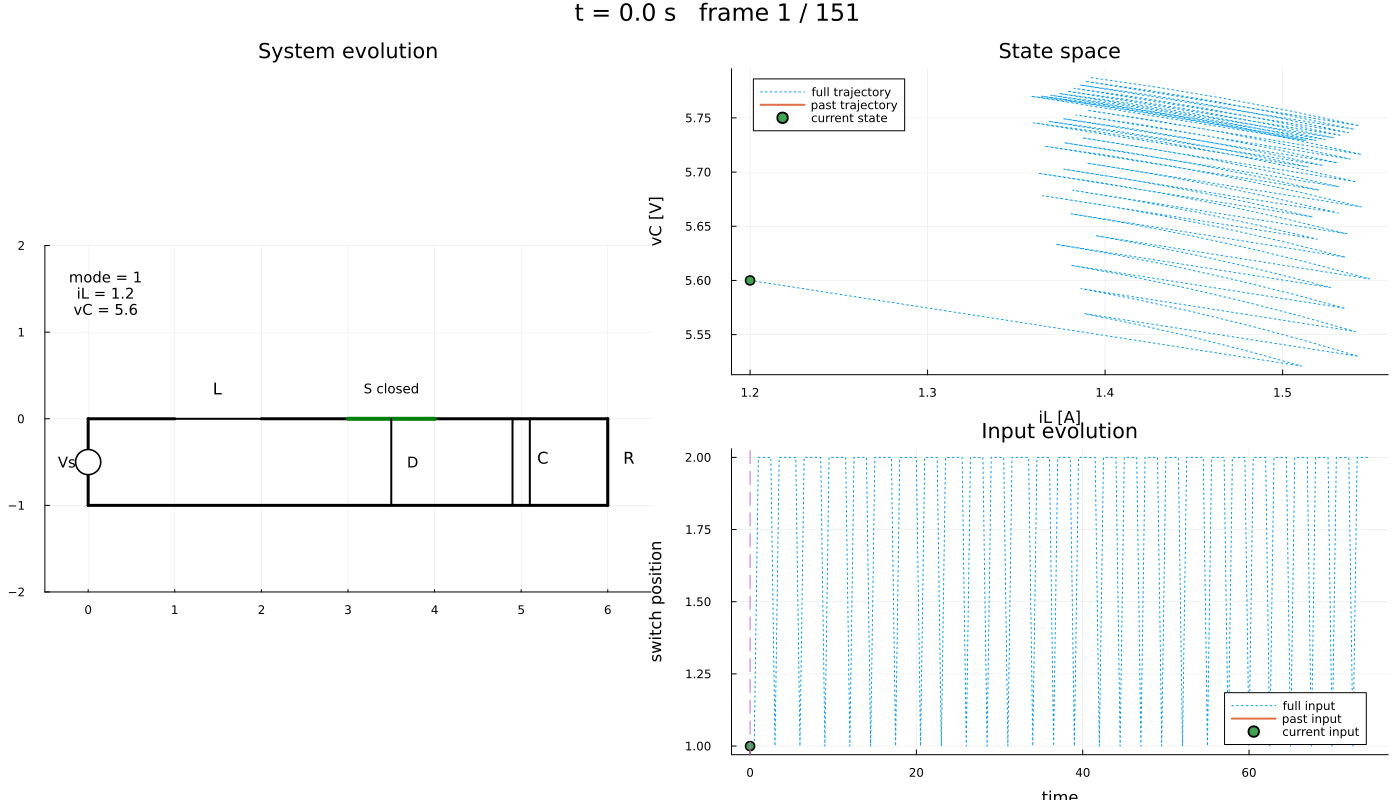

And the same dashboard as the first model. One translation is needed first: the inputs of a hybrid closed loop are symbolic — an empty vector for "hold the switch", a "SWITCH 1 -> 2" marker when it flips — so there is no numeric channel for the input panel to draw. What the panel should show is the switch position, and that is the modes channel. Re-expressing the mode as a one-dimensional input gives back exactly the signal the continuous model plotted.

hybrid_switch = ST.Trajectory(
    ST.states(hybrid_traj);
    inputs = [SVector(Float64(m)) for m in ST.modes(hybrid_traj)[1:(end - 1)]],
);

anim_hybrid = Dionysos.animate_trajectory_dashboard(
    DCDC.system_plot!(),
    hybrid_switch;
    xdims = (1, 2),
    udims = (1,),
    Δt = 0.5,
    frame_step = 2,
    xlabel_state = "iL [A]",
    ylabel_state = "vC [V]",
    ylabel_input = "switch position",
);
gif(anim_hybrid; fps = 8)
